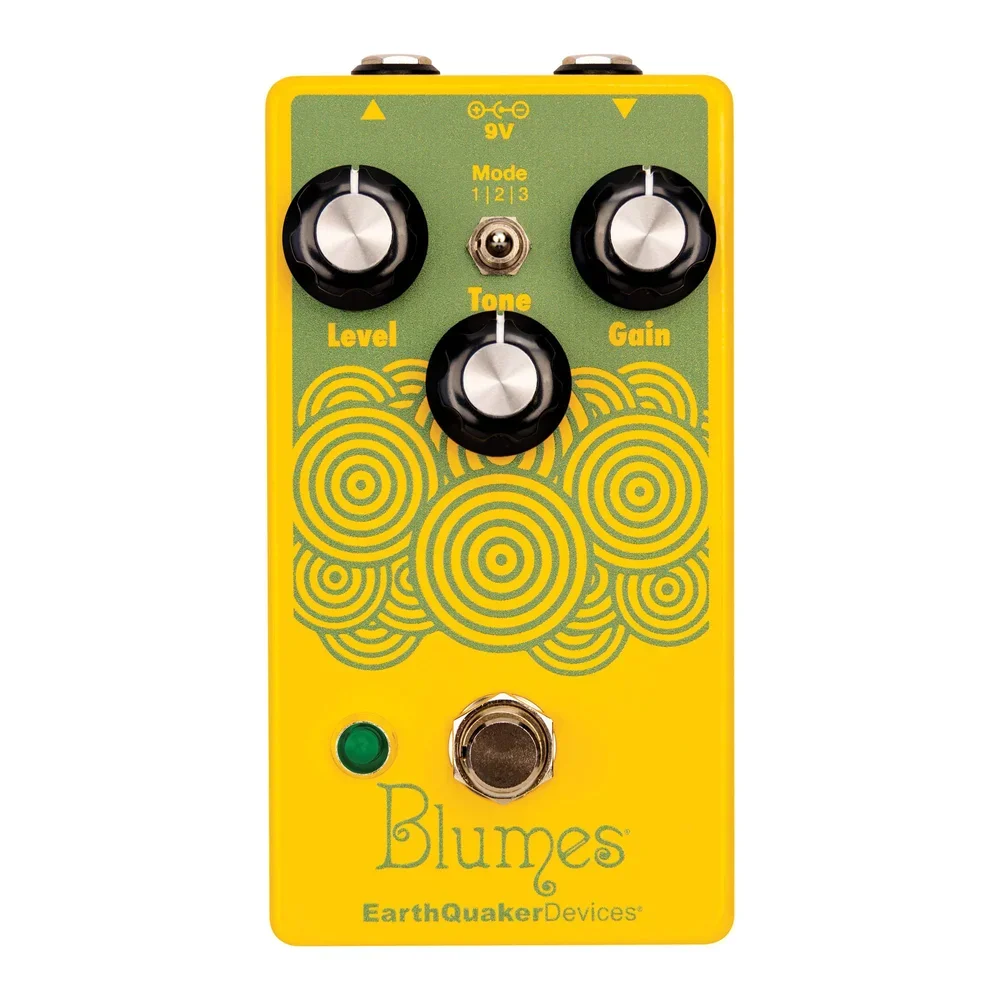

EarthQuaker Devices Blumes Low Signal Shredder Overdrive Pedal
|
|
|
|
|
|
|
Controls
Gain: This controls the amount of drive.?
Tone: More bass to the left, more middles in the middle and more treble to the right.
Level: This controls the output volume.
Clipping Modes (3-Way Toggle):?
-
Symmetrical LED clipping: more crunch and compression.
-
No clipping: wide open OpAmp drive for clean boost.
-
Asymmetrical silicon diode clipping: more transparency with a loose feel.
Design Notes
While embodying most of the kick ass characteristics and features of the Plumes, we went ahead and modified this circuit with double the gain and a deeper bass response to retain all the low end. At lower gain settings, you’ll get all of the crunchy tone you love about the original, but once you get above noon on the Gain control, that’s where the similarities stop. Now you’re in bass country, baby! Get ready to shake some walls and field some angry calls from your neighbors (just send them to voicemail).
And much like the Plumes, this pedal offers three different clipping options for your desired low end face melting needs.
Mode 1 is symmetrical LED clipping that utilizes a pair of light emitting diodes. This is the crunchiest setting the Blumes has to offer. This signal is less compressed and way more open with tons of output for when you really want to go wild.
Mode 2 is a clean pure OpAmp gain boost mode. This eliminates the soft clipping diodes altogether and leaves you with straight OpAmp drive. This will be the loudest output with the fullest frequency response, and can be used as a clean boost when the Gain control is set below 11 o’clock.
Mode 3 is an asymmetrical silicon diode arrangement similar to the stock screamer but with more output and clean clarity, which provides more transparent tone. Using this mode gives a warmer low-end response and lower output. It’s fuzzier with half the output and is the most compressed. If you like the fuzzy ends of distortion with a clean undertone, you’ll love this setting. We guarantee it.
